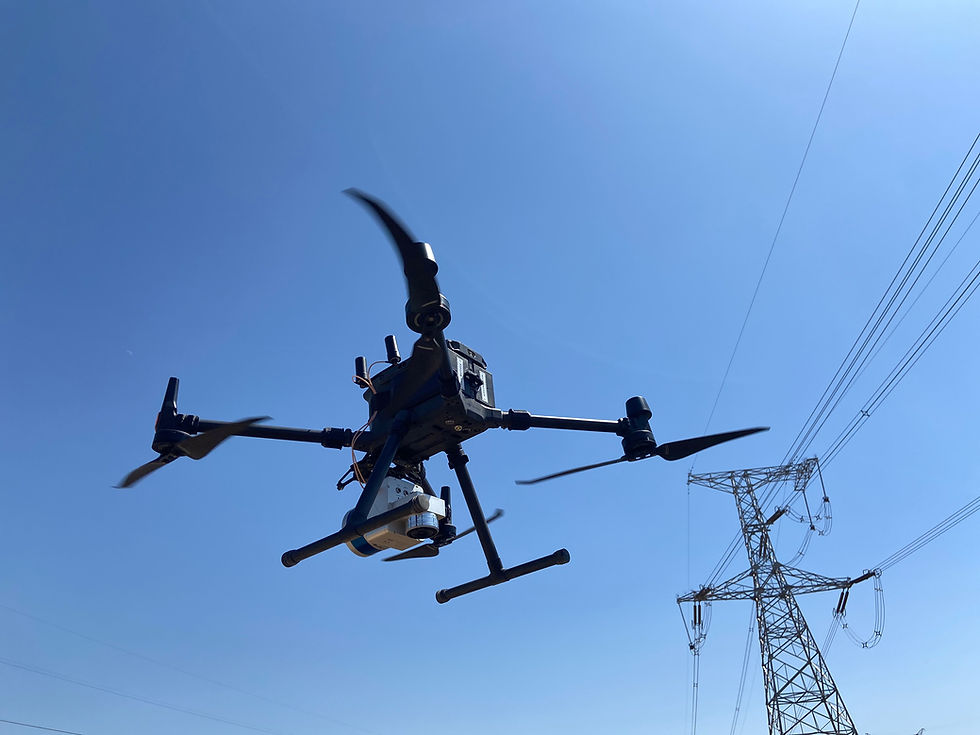

The LiAir 50N is a lightweight UAV- or sUAS-mounted LiDAR survey instrument. This system features a Velodyne's Puck laser scanner and it is one of the most cost-effective LiDAR systems in GVI’s LiAir Series. This lightweight 3D surveying and mapping payload was designed with DJI’s Matrice 600 Pro & DJI M300 RTK series platforms. LiAir 50N is able to provide highly accurate 3D point cloud data and is a great fit for applications in a wide variety of industries. And it is also equipped with a high-definition digital camera, which can be used to generate photogrammetry products as well as true color 3D point clouds.

LiAir 50N

  • Laser Sensor Velodyne VLP-16
    Range Accuracy ± 3mm
    System Accuracy ± 5cm (S50)
    POS System Performance

    Attitude (S50): 0.1° (1σ)
    Azimuth (S50): 0.1° (1σ)

    Attitude (P50): 0.015° (1σ)
    Azimuth (P50): 0.08° (1σ)
    Onboard Storage 128GB
    Ports Available Ethernet & USB 3.0
    Weight 3.4kg excluding:
    battery & camera
    Dimensions (Main Unit) 1170 x 181 x 197 mm
    Max. Flight Time 21 min
    Camera Sony a6000 (optional)
    Route Planning Software LiPlan
    Acquisition /PP POS Software LiGeoreference
    Vertical FOV -15° ~ +15°
    Horizontal FOV 360°
  • Manufacturer poli
