The LiAIR X3 is the latest lightweight UAV LiDAR system specialized on powerline inspect. This compact LiDAR sensor provides high-performance and high-efficiency mapping, weighing in at only 1.25kg. Compatible with DJI Matrice 300 RTK and easily integrated with other compact drones in the market.

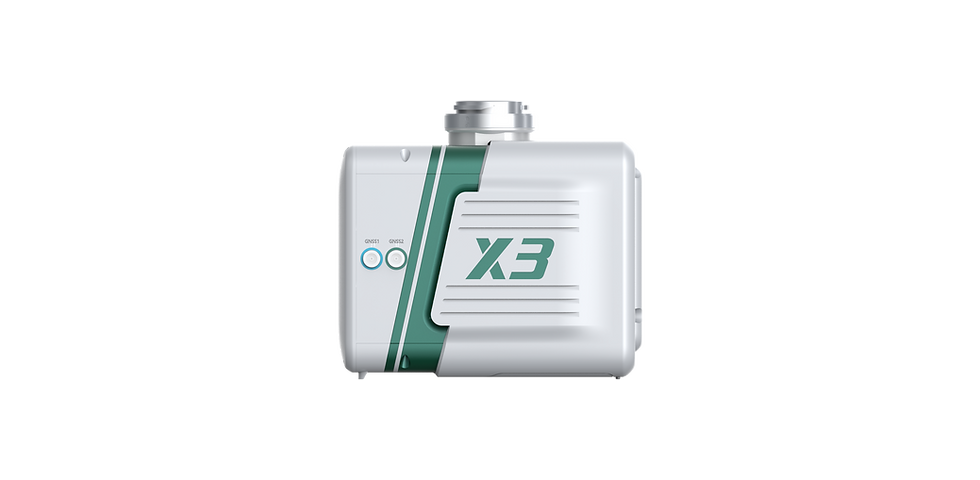

LiAir X3 Powerline
$17,800.00Price
Laser Sensor Livox AVIA Weight 1.25kg Range Accuracy ± 2cm System Accuracy ± 5cm POS System Performance Attitude: 0.008° (1σ) Azimuth: 0.038° (1σ) Onboard Storage 128GB Detection Range(@100klx) 190m @ 10% reflectance 230m @ 10% reflectance 320m @ 10% reflectance Dimensions (Main Unit) 136 × 106 × 129 mm Camera Image Sensor Format APS-C Lens
16 mm fixed focal length lens
Effective Pixels 26 megapixels
Picture Element Size 3.76 um
Image Size 6252 * 4168
DFOV 83°Display and Control Application LiPLan APk Acquisition /PP POS Software LiGeoreference Field of View Repetitive scanning pattern 70.4° horizontal × 4.5° vertical
Non repetitive scanning pattern: 70.4° ( horizontal ) × 77.2° ( vertical)Scan Rate 240,000 pts/s (first return)
480,000 pts/s (dual return)
720,000 pts/s (triple return)
IP Rating (IP67) Laser Safety Class 1 (IEC 60825 1:2014) (Safe for eyes) Manufacturer policy
