LiGrip SE RTK is equipped with dual 12MP high-definition cameras and utilizes the latest generation of proprietary surveying-grade SLAM algorithms from GreenValley International. It delivers precise, reliable data with no rework required. Rated IP54 for water and dust resistance, it adapts seamlessly to harsh environments. Paired with a variety of productivity accessories, the SE flexibly handles complex scenarios. Combined with our turnkey software solution, it ensures convenient operation and immediate results—making it your ideal choice for mobile mapping.
LiGrip SE + LiDAR360MLS BP Software

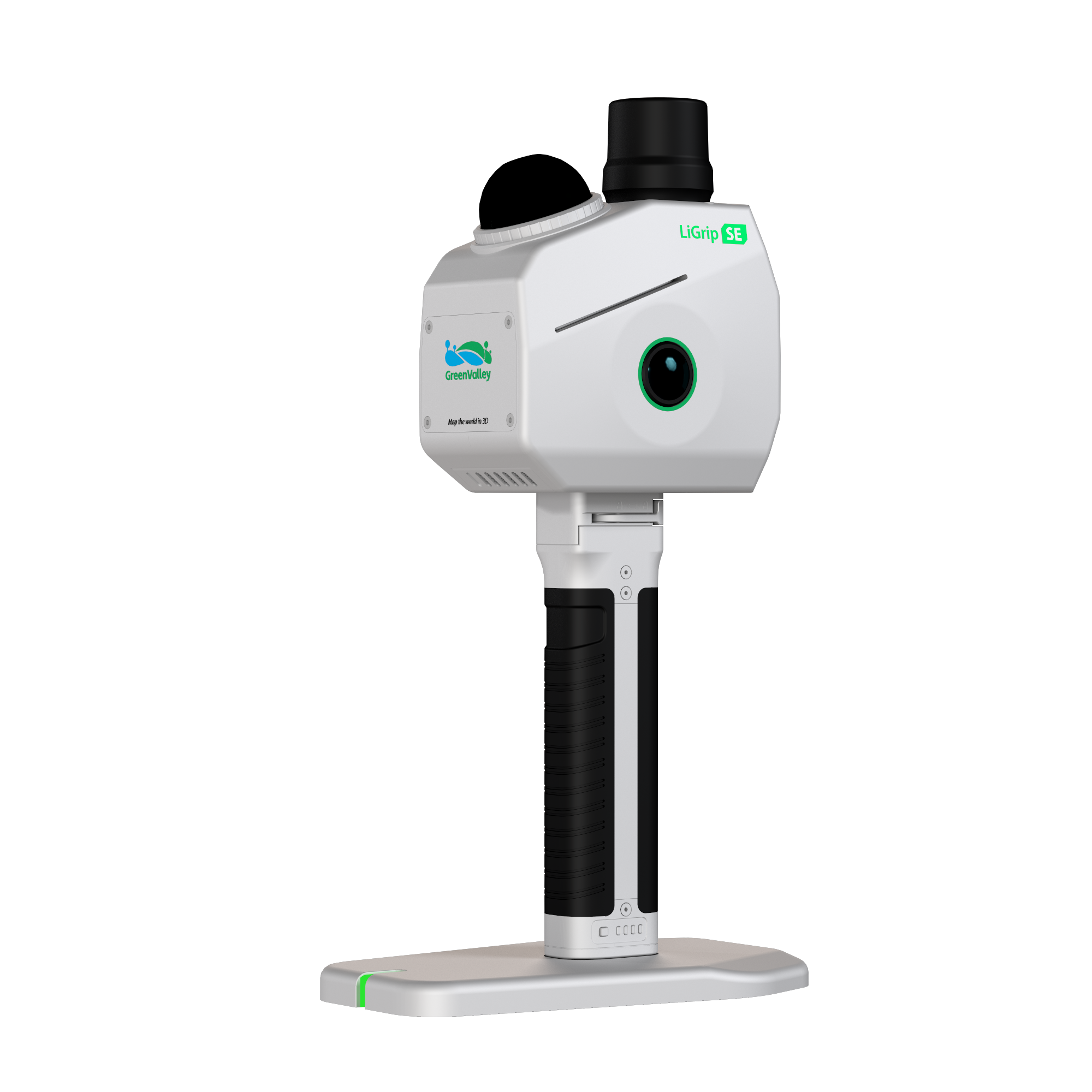

LiGrip SE RTK
System Parameters
Absolute Accuracy <5 cm [1] IP Rating IP54
Relative Accuracy <2 cm [2] Storage 256 GB SSD
Repeat Accuracy <3 cm [3] Port Type-C
Horizontality / Verticality <0.05° [4] Control Method APP, Button
Power Supply Method Lithium Battery Powered Firmware Upgrade OTA, Offline
Battery Capacity 3450 mAh Operating Temperature -20℃ ~40℃
Battery Life 2.5h (Single Battery),
Up to 5h with Dual Battery Backpack Storage Temperature -40℃ ~ 70℃
APP Platform Android, iOS Battery Storage Temperature Recommended Storage Temperature:
22℃ ~ 30 ℃ [6]
Dimensions SE RTK: 345×187×117 mm
SE: 321×187×117 mm Weight (incl. battery, base) SE RTK: 1.38 KG
SE: 1.33 KG
LiDAR Sensor Parameters
Laser Mid360 Wavelength 905 nm
Scan Rate 200,000 pts/s Detection Range 40 m @ 10% reflectivity;
70 m @ 80% reflectivity
LiDAR Accuracy 2 cm FOV Horizontal 360 ° , Vertical -7 ° ~ 52 °
Safety Level Class 1 (Eye-safe)
Camera Parameters
Number of Cameras 2 Panoramic Camera 12MP ×2
Capturing Frame Rate 0-5Hz
[1][2]: Measured in the precision field of GreenValley International (GVI); deviations may occur in some scenarios.
